New GVS9000 series · Nomadic 2U
PCIe Gen5 storage without the old bottlenecks.
A high-availability, low-latency NVMe platform for AI/ML, composable compute and data-intensive server and storage systems.
PCIe 5.032 GT/sPer lane
A new class of local infrastructure
Connect hosts, accelerators and NVMe media as one PCIe fabric.
The Nomadic 2U extends GVS system engineering into PCIe Gen5 switching. It can serve as a straightforward in-box connectivity layer or as the foundation of a scalable, cost-effective PCIe fabric that moves data between CPUs, DPUs, I/O devices and storage with less latency, complexity and power overhead.
Standard SR-IOV and multifunction capabilities enable I/O sharing among multiple hosts on a single PCIe fabric topology. Broadcom tunneled-window connectivity also supports low-latency host-to-host communication for short packets.
Architecture
Maximum flexibility at PCIe 5.0 rates.
PCIe Gen5 fabric
Up to eight PCIe Gen5 x16 host and expansion interfaces per system, each supporting as much as 1024 Gb/s (128 GB/s) of raw bidirectional link bandwidth.
Dual switch controllers
Two controller canisters built around Broadcom PEX 89144 PCIe Gen5 switch technology provide a foundation for availability and flexible topology.
24 active NVMe drives
Twenty-four active hot-swap dual-port U.2 drives, plus one spare and one parity drive, support high-performance NVMe all-flash-array architectures.
Composable connectivity
Fan out CPU PCIe ports across large numbers of I/O devices, DPUs and subsystems, or create scalable in-rack PCIe fabrics for multiple hosts.
High availability
Designed to stay online and remain serviceable.
Dual controller canisters, dual-port drives, redundant Titanium power, independent cooling and hot-swap components create a fault-tolerant platform designed for straightforward maintenance and management.
Dual controllers
Redundant switch canisters support resilient storage and fabric designs.
Hot-swap media
Tool-less U.2 trays make drive service direct and controlled, with a spare drive available for resilient operation.
Redundant power
3200W 1+1 hot-swap 80 Plus Titanium power supplies with dual AC input.
Intelligent management
BMC monitoring with IPMI 2.0 compliance and front-panel status indicators.

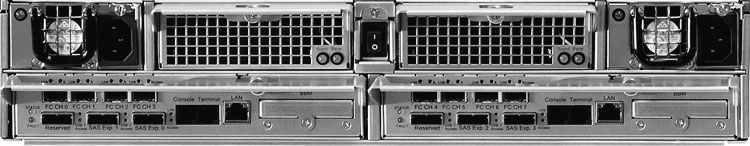

Platform views

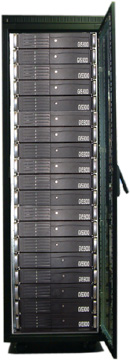

GVS9000 engineering from the system to the rack.
Technical specifications
Nomadic 2U PCIe Gen5.
Final drive, interface-card, DPU and host configurations are engineered to the application. NVMe-over-Fabrics connectivity is supported through qualified third-party cards.
- Form factor
- 2U rackmount · 438 × 750 × 88 mm (17.2 × 29.5 × 3.5 in)
- Drive configuration
- 24 active 2.5-inch hot-swap Gen5 U.2 dual-port drives, plus one spare and one parity drive · SFF-8639
- PCIe switch
- Broadcom PEX 89144 PCIe Gen5 base bridge board
- Controllers
- Dual hot-swap controller canisters
- Host / expansion
- 4 × PCIe Gen5 x16 per canister · 8 × x16 per system · supports up to 4 DPUs
- Management
- BMC with IPMI 2.0 compliance · LED status indicators
- Cooling
- 7 × 4056 PWM fans per canister · 14 fans total
- Power
- 3200W 1+1 hot-swap redundant 80 Plus Titanium power supplies · dual AC inlet
- Input
- 100–240V AC, full range
- Operating range
- 0°C to 35°C · 20% to 80% relative humidity
- Non-operating
- −20°C to 60°C · 10% to 90% relative humidity
- Serviceability
- Tool-less drive trays · standard 36-inch tool-less rail
Designed for
Workloads where every microsecond and every lane matters.
NVMe all-flash arrays
AI, machine learning and deep learning
Composable hyperscale compute
Hyper-converged infrastructure
High-performance server I/O expansion
Low-latency in-rack host communication
Configure the platform
Build the PCIe fabric around your workload.
Tell us the hosts, accelerators, DPUs, NVMe capacity, redundancy and bandwidth required. GVS will provide the appropriate detailed product documentation after reviewing the application.
Request specifications
